Trus Joist EWP

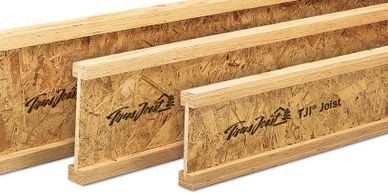

Trus Joist I-Joists
Timberstrand Fire Code Approved Floor Joist
Timberstrand Fire Code Approved Floor Joist
Item - Flange - L/360 Span* - L/480 Span* - Lengths
- 9-1/2" - TJI 110 - 1-3/4" - 17'-2" 15'-6" - 12' - 48'
- 11-7/8" - TJI 110 - 1-3/4" - 19'-4" 18'-5" - 12' - 48'
- 11-7/8" - TJI 210 - 2-1/16" - 21'-2" 19'-3" - 12' - 48'
- 11-7/8" - TJI 360 - 2-5/16" 23'-2" - 19'-8" - 12' - 48'
- 11-7/8" TJI 560 - 3-1/2" 26'-3" - 23'-8" - 12' - 48'
- 14" TJI 360 - 2-5/16" - 26'-3" 23'-8" - 12' - 48'
- 14" TJI 560 - 3-1/2" - 29'-9" 26'-10" - 12' - 48'
- 16" TJI 360 - 2-5/16" - 29'-0" 26'-3" - 12' - 48'
- 16" TJI 560 - 3-1/2" - 32'-11" 29'-3" - 12' - 48'
16" O.C. 40 PSF Live Load / 10 PSF Dead Load
We recommend using L/480 for approved floor spans
timberstrand beams engineered lumber
Timberstrand Fire Code Approved Floor Joist
Timberstrand Fire Code Approved Floor Joist
Timberstrand Fire Code Approved Floor Joist
Item - Flange - L/360 Span* - L/480 Span* - Lengths - Unit Size
- 11-7/8" Timberstrand 1-1/2" 20' - 10" 18' - 10" 12' - 48' 28
- 40 PSF Live Load / 10 PSF Dead Load
timberstrand beams engineered lumber St. Louis
2.0E Microllam LVL with Watershed Overlay
Timberstrand Fire Code Approved Floor Joist
2.0E Microllam LVL with Watershed Overlay
Item Flange Lengths Unit Size
- 5-1/2" 1-3/4" 12' - 48' 48
- 7-1/4" 1-3/4" 12' - 48' 36
- 9-1/4" 1-3/4" 12' - 48' 30
- 9-1/2" 1-3/4" 12' - 48' 30
- 11-1/4" 1-3/4" 12' - 48' 24
- 11-7/8" 1-3/4" 12' - 48' 24
- 14" 1-3/4" 12' - 48' 18
- 16" 1-3/4" 12' - 48' 18
- 18" 1-3/4" 12' - 48' 12
- 20" 1-3/4" 12' - 48' 12
- 24" 1-3/4" 12' - 48' 12
2.0E Microllam LVL Edge Seal
- 11-7/8" Edge Seal 1-3/4" 12' - 48' 24
St. Louis timberstrand beams construction and building materials
2.0E Parallam PSL Beams
Timberstrand Framing Lumber
2.0E Microllam LVL with Watershed Overlay
Item Lengths
- 3-1/2" x 9-1/4" 12' - 48'
- 3-1/2" x 9-1/2" 12' - 48'
- PL 3-1/2" x 11-1/4" 12' - 48'
- 3-1/2" x 11-7/8" 12' - 48'
- 3-1/2" x 14" 12' - 48'
- 3-1/2" x 16" 12' - 48'
- 3-1/2" x 18" 12' - 48'
- 5-1/4" x 9-1/4" 12' - 48'
- 5-1/4" x 9-1/2" 12' - 48'
- 5-1/4" x 11-1/4" 12' - 48'
- 5-1/4" x 11-7/8" 12' - 48'
- 5-1/4" x 14" 12' - 48'
- 5-1/4" x 16" 12' - 48'
- 5-1/4" x 18" 12' - 48'
1.8E Parallam Columns
- 3-1/2" x 3-1/2" 8' - 48'
- 3-1/2" x 5-1/4" 8' - 48'
- 3-1/2" x 7" 8' - 48'
- 5-1/4" x 5-1/4" 8' - 48'
- 7" x 7" 8' - 48'
timberstrand beams engineered lumber St. Louis
Timberstrand Rimboard
Timberstrand Framing Lumber
Timberstrand Framing Lumber
Item Lengths
- 1-1/8" x 9-1/2" Rimboard 16'
- 1-1/8" x 11-7/8" Rimboard 16'
- 1-1/8" x 14" Rimboard 16'
- 1-1/8" x 16" Rimboard 16'
- 1-1/4" x 11-7/8" Rimboard 16'
- 1-1/4" x 11-7/8" Rimboard 20'
- 1-1/4" x 14" Rimboard 16'
- 1-1/4" x 16" Rimboard 16'
engineered lumber timberstrand beams St. Louis
Timberstrand Framing Lumber
Timberstrand Framing Lumber
Timberstrand Framing Lumber
Item Lengths
- 2x4 12' - 48'
- 2x6 12' - 48'
- 2x8 12' - 48'
- 2 x 4 Treated 16'
- 2 x 6 Treated 16'
timberstrand beams engineered lumber St. Louis

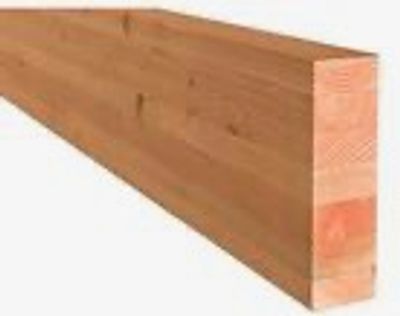

Glulams
Rosboro Untreated Glulams
Size Finish Length Unit Size
- 3-1/2" x 9-1/2" Untreated 12' - 48', 4' Increments 6
- 3-1/2" x 11-7/8" Untreated 12' - 48', 4' Increments 6
- 3-1/2" x 14" Untreated 12' - 48', 4' Increments 6
- 5-1/2" x 9-1/2" Untreated 12' - 48', 4' Increments 4
- 5-1/2" x 11-7/8" Untreated 12' - 48', 4' Increments 4
- 5-1/2" x 14" Untreated 12' - 48', 4' Increments 4
- 5-1/2" x 16" Untreated 12' - 48', 4' Increments 4
- 3-1/2" x 11-7/8" Untreated 16' - 9" Pre-cut Garage Header
St. Louis Saint Charles engineered lumber timberstrand beams
Rosboro Treated Glulams
Size Finish Length Unit Size
- 3-1/2" x 11-7/8" Treated 12',16',20',24',28',32',36', & 48' 6
- 3-1/2" x 14" Treated 12',16',20',24',28',32',36', & 48' 6
- 3-1/2" x 16" Treated 12',16',20',24',28',32',36', & 48' 6
- 5-1/2" x 9-1/2" Treated 12',16',20',24',28',32',36', & 48' 4
- 5-1/2" x 11-7/8" Treated 12',16',20',24',28',32',36', & 48' 4
- 5-1/2" x 14" Treated 12',16',20',24',28',32',36', & 48' 4
- 5-1/2" x 16" Treated 12',16',20',24',28',32',36', & 48' 4
- 5-1/2" x 5-1/2" Treated 12',16',20',24',28',32',36', & 48' 4
timberstrand beams construction and building materials engineered lumber Saint Charles St. Louis St. Peters
Joist Hangers
1-3/4" Width - TJI 110 Series, LVL, Timberstrand
1-3/4" Width - TJI 110 Series, LVL, Timberstrand
1-3/4" Width - TJI 110 Series, LVL, Timberstrand
- HUS1.81/10 1-3/4"x 9-1/4" Flush Face Mount Hanger Heavy
- IUS1.81/9 1-3/4"x 9-1/2" Flush Face Mount Hanger
- ITS1.81/9.5 1-3/4"x 9-1/2" Top Mount Hanger
- ITS1.81/11.88 1-3/4"x 11-7/8" Top Mount Hanger
- IUS1.81/11.88 1-3/4"x 11-7/8" Flush Face Mount
- SUR1.81/11 1-3/4"x 11-7/8" Flush Face Mount Hanger Skewed Right
- SUL1.81/11 1-3/4"x 11-7/8" Flush Face Mount Hanger Skewed Left
- IUS1.81/14 1-3/4"x 14" Flush Face Mount Hanger
- ITS1.81/14 1-3/4"x 14" Top Mount Hanger
- LSSUI25 1-3/4"x 8-1/2" Slopeable/Skewable Hanger
construction and building materials timberstrand beams engineered lumber St. Peters St. Louis Saint Charles
2-1/16" - Width TJI 210 Series
1-3/4" Width - TJI 110 Series, LVL, Timberstrand
1-3/4" Width - TJI 110 Series, LVL, Timberstrand
- IUS2.06/9 2-1/16"x 9-1/2" Flush Face Mount Hanger
- ITS2.06/11.88 2-1/16"x11-7/8" Top Mount Hanger
- SUL2.1/11 2-1/16"x 11-7/8 Flush Face Mount Skewed Left 45 Deg.
- SUR2.1/11 2-1/16"x 11-7/8 Flush Face Mount Skewed Right 45 Deg.
- LSSU2.1 2-1/16"x 8-1/2" Slopeable/ Skewable Hanger
- MIT4.28 4-1/8"x 11-7/8" Top Mount Double Hanger
- HUL4.28/11 4-1/8"x11-7/8" Flush Face Mount Skewed Left 45 Deg.
- HUR4.28/11 4-1/8"x11-7/8" Flush Face Mount Skewed Right 45 Deg.
construction and building materials timberstrand beams engineered lumber St. Louis Saint Charles St. Peters
2-5/16" Width - TJI 360 Series
1-3/4" Width - TJI 110 Series, LVL, Timberstrand
3-1/2" Width - TJI 560 Series, Double LVL, Timberstrand, Parallam
- IUS2.37 2-5/16"x 11-7/8" Flush Face Pount Hanger
- ITS2.37/11.88 2-5/16"x11-7/8" Top Mount Hanger
- MIT3511.88-2 4-5/8"x11-7/8" Top mount Double Hanger
- IUS2.37/14 2-5/16"x14" Flush Face Mount Hanger
- ITS2.37/14 2-5/16"x 14" Top Mount Hanger
- MIT3516 2-5/16"x 16" Top Mount Hanger (optional Nailing holes)
- ITS2.37/16 2-5/16"x 16" Top Mount Hanger
- SUR2.37/11 2-5/16"x 11-3/16" Flush Face Mount Skewed Right
- SUL2.37/16 2-5/16"x 11-3/16" Flush Face Mount Skewed Left
- LSSUI35 2-5/16"x 8-1/2" Slopeable/Skewable Hanger
Saint Charles St. Louis St. Peters engineered lumber timberstrand beams construction and building materials
3-1/2" Width - TJI 560 Series, Double LVL, Timberstrand, Parallam
3-1/2" Width - TJI 560 Series, Double LVL, Timberstrand, Parallam
3-1/2" Width - TJI 560 Series, Double LVL, Timberstrand, Parallam
- HHUS410 3-1/2"x 9" Flush Face Mount Hanger (up to 14")
- HUC410 3-1/2"x 9-1/4" Flush Face Mount Concealed Hanger
- MIT49.5 3-1/2"x 9-1/2" Top Mount Hanger
- MIT411.88 3-1/2"x11-7/8" Top Mount Hanger
- MIT414 3-1/2"x14" Top Mount Hanger
- MIT416 3-1/2"x 16" Top Mount Hanger
- SUR410/45 3-1/2"x 8-1/2" Flush Face Mount Hanger Skewed Right
- SUL410/45 3-1/2"x 8-1/2" Flush Face Mount Hanger Skewed Left
- LSSU410 3-1/2x 9-1/4 Slopeable/Skeweable Hanger
St. Louis Saint Charles engineered lumber St. Peters timberstrand beams construction and building materials
5-1/4" Width - Triple LVL, Parallam
3-1/2" Width - TJI 560 Series, Double LVL, Timberstrand, Parallam
5-1/4" Width - Triple LVL, Parallam
- HHUS5.50/10 5-1/4"x9" Flush Face Mount Hanger ( up to 14")
- HB5.50/11.88 5-1/4"x 11-7/8' Top Mount Hanger
